GA Magnesium Aluminate Spinel Crucible, MgAl2O4

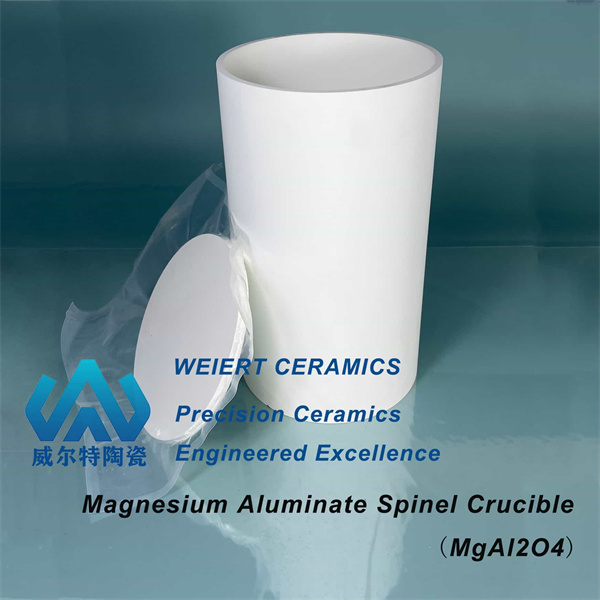

Product Name:
Magnesium Aluminate Spinel Crucible（MgAl₂O₄）
Product Information:
Type: Alumina-rich spinels
Dimensions: 300 x 200 x 6 mm (H x OD x Th)
Tolerance: ±0.1mm
Maximum Operating Temperature: 1700℃
Application:
Material calcination lining
Advantages:
It has better thermal shock resistance and slag resistance compared to magnesia-chromite refractories.
Available Maximum Size: Od400 x H400mm
Material calcination lining
Advantages:
It has better thermal shock resistance and slag resistance compared to magnesia-chromite refractories.
Available Maximum Size: Od400 x H400mm
Magnesium Aluminate Ceramics China factory
WEIERT CERAMICS offers both Magnesia-rich (MR) spinels and Alumina-rich spinels. Our spinel products are designed primarily for general industrial applications, particularly for refractory materials such as crucibles. They are well-suited for conventional industrial environments, providing stable performance and excellent cost-effectiveness. We also offer customized sizes, with no minimum order quantity required.
MA Spinel Ceramic Parameters
MgAl2O4 Content：98.2%
Density ：3.4g/cm³
CTE：7.5ppm/K
Thermal Conductivity ：5.9W/m.K
MgAl2O4 Content：98.2%
Density ：3.4g/cm³
CTE：7.5ppm/K
Thermal Conductivity ：5.9W/m.K
